LED Downlights

LED Downlights have aluminium body and PMMA/acrylic diffuser

3W LED Downlight

3W LED Downlights Ceiling Flush Mount -PL003.01

220V-240V
240Lumen
Aluminium Body PMMA Diffuser NoVoLED Driver
3000K-4000K-6500K Colors
IP23 Protection
Ø75mm Installation Cut Diameter

6W_LED_Downlight

6W LED Downlight Ceiling Flush Mount -PL006.01

220V-240V
480Lumen
Aluminium Body PMMA Diffuser NoVoLED Driver
3000K-4000K-6500K Colors I
P23 Protection
Ø110mm Installation Cut Diameter

6W_LED_Downlight

9W LED Downlight Ceiling Flush Mount -PL009.01

220V-240V
720Lumen
Aluminium Body PMMA Diffuser NoVoLED Driver
3000K-4000K-6500K Colors
IP23 Protection
Ø135mm Installation Cut Diameter

6W_LED_Downlight

12W LED Downlight Ceiling Flush Mount -PL012.01

220V-240V
960Lumen
Aluminium Body PMMA Diffuser NoVoLED Driver
3000K-4000K-6500K Colors
IP23 Protection
Ø170mm Installation Cut Diameter

6W_LED_Downlight

15W LED Downlight Ceiling Flush Mount -PL015.01

220V-240V
1200Lumen
Aluminium Body PMMA Diffuser NoVoLED Driver
3000K-4000K-6500K Colors
IP23 Protection
Ø182mm Installation Cut Diameter

6W_LED_Downlight

18W LED Downlight Ceiling Flush Mount -PL018.01

220V-240V
1440Lumen
Aluminium Body PMMA Diffuser NoVoLED Driver
3000K-4000K-6500K Colors
IP23 Protection
Ø205mm Installation Cut Diameter

How to Choose LED Downlights?
  •
    First, decide on color temperature from warm (3000K) to cool color (6500K). Please check the relevant information from Wikipedia
  •
    And then, how many lumens will you need? Generally speaking for each m2 you can take 100 Lumens.
  •
    Now that you know what lumen you have to use, by how many Led Downlights you will get that light output (lumen)

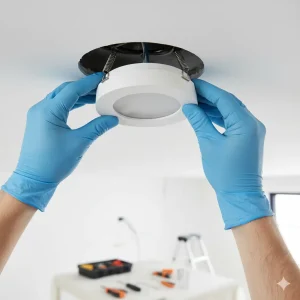

How do you install LED downlights on a ceiling?
  •
    First find the exact place that you would like to install on a ceiling
  •
    Cut out a circle according to cut diameter indicated above. Use plasterboard saw preferably.
  •
    Put the wiring through the hole.
  •
    Install the downlight and fix it.
